BT-6858-1S-1M-RF

Categories: , , ,

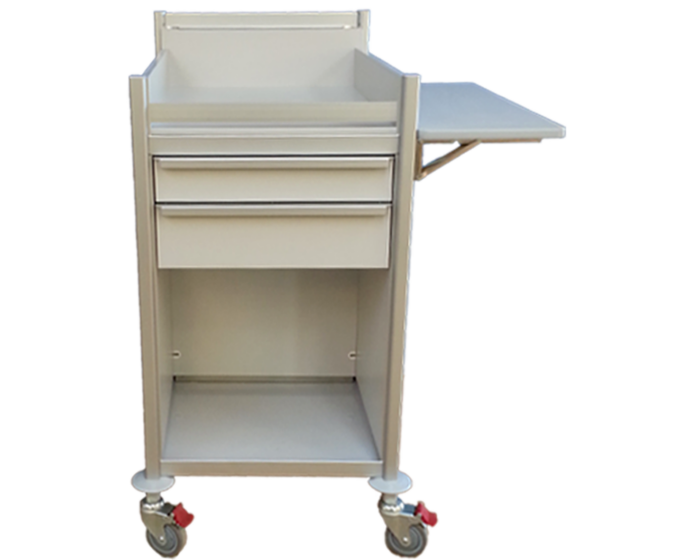

Paediatric Heat Trolley with storage drawers and extra workspace

Frame size, 680 W x 580 D x 1155 H mm
Height to top-shelf 970mm
Two drawers: 1 x 75mm H, 1 x 125mm H
Lift up flap
Lower shelf

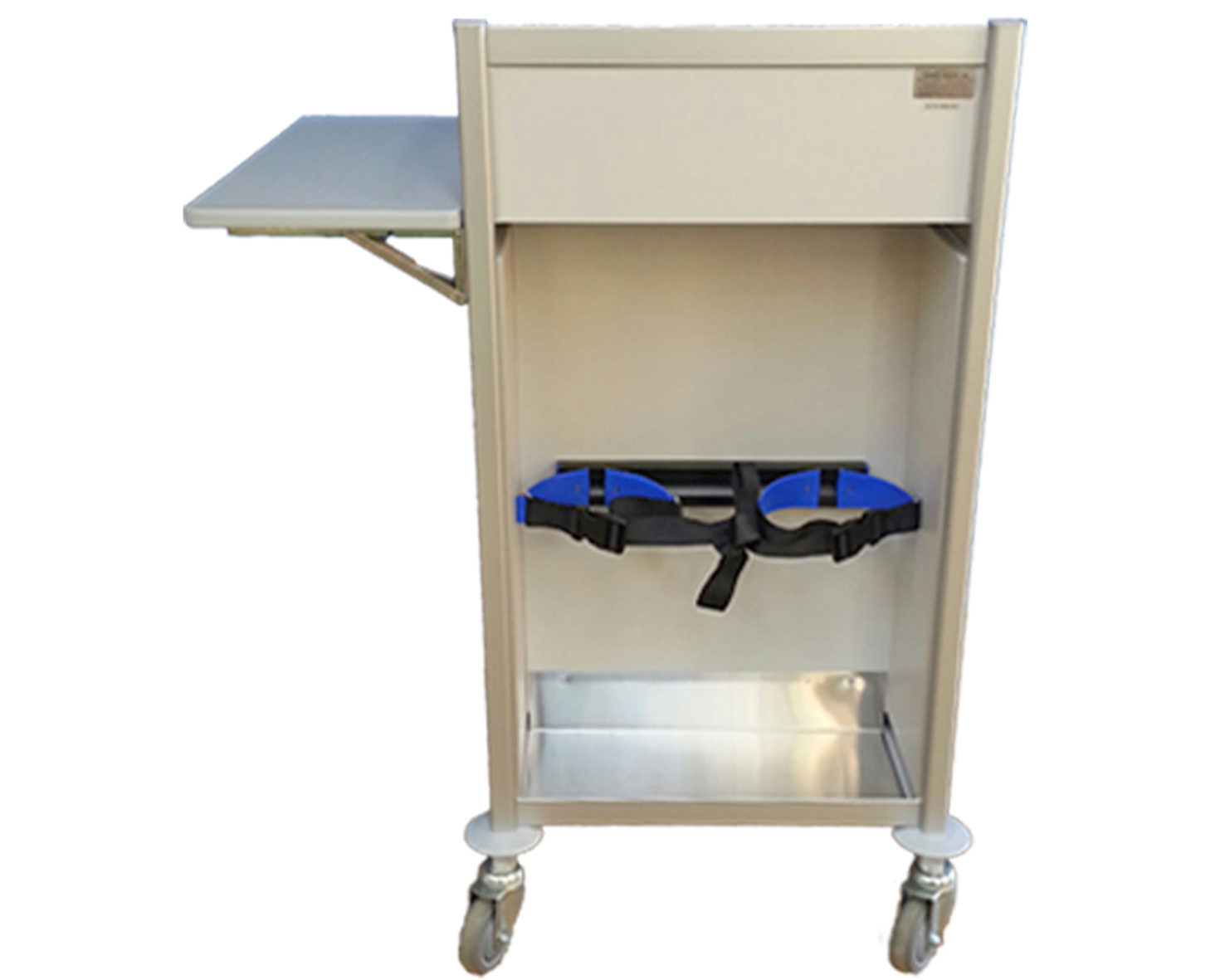

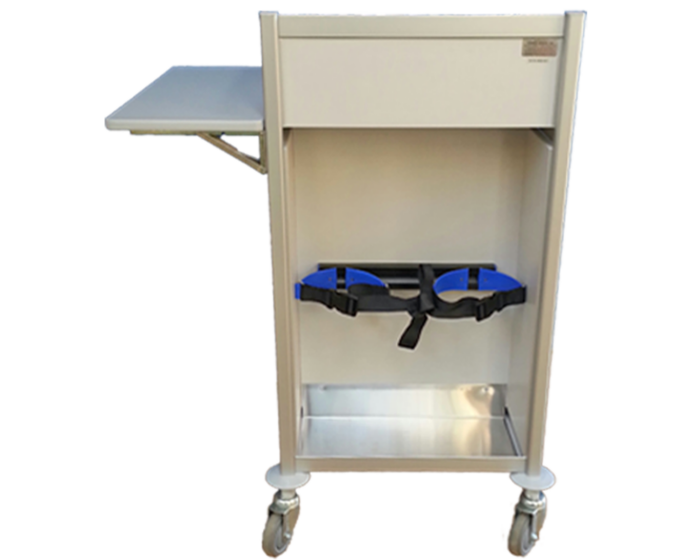

Rear opening 730mm H with bottle brackets to hold 2 x 180mm diameter oxygen bottles
Stainless steel tray liner
Impact-resistant PVC wall buffers on each frame post
100mm nylon reinforced castors, with non-marking soft rubber wheels
Designed & made in New Zealand

Features, options & instructional videos >>

Additional Information

  • Trolley frames are made from natural anodised aluminium extrusions with a unique interlocking assembly system
  • Natural anodised aluminium extruded trolley posts for years of durability. Our New Zealand sourced aluminium can be recycled indefinitely due to its high intrinsic value.
  • Slim walled natural anodised aluminium extruded drawers for years of durability
  • Trolley drawers use European-designed full extension steel runners with a total drawer weight rating of 45kgs (including the drawer). Guided by 2 ball cages for easy glide operation. The drawer can be easily detached from the central runner rail. Limited lifetime warranty
  • Drawer internal height options of 75 mm (Small), 125 mm (Medium) and 175 mm (Large)
  • Solid natural anodised aluminium drawer handles
  • Cabinets are made from low-pressure melamine
  • Worktop surfaces, including shelves, are made from high-pressure laminate which is impervious to moisture.
  • Many trolleys feature removable and reversible solid laminate shelves. Imprevious to moisture, these shelves are easy to clean and can handle detergent & disinfectant wipes
  • An ‘L’ shaped trolley rail that provides a lip on all sides of shelves or reversed for a flush top
  • 100 mm castors steel or nylon castors
  • Wall protection buffers fitted to trolley posts above castors
  • Drawer bases are made using an MDF substrate sourced from sustainable forests and processed by fully qualified FSC and PEFC mills in New Zealand. The base is wear and scratch resistant making it an easy clean surface and chemical resistant.
  • Made in Taranaki, New Zealand

  • 125mm castors
  • Anti-Microbial cabinets (to JIS Z 2801)
  • Locks fitted for single or multiple drawers
  • IV Pole
  • Oxygen bottle holder
  • Side-mounted flap
  • Pull out slide
  • Upstand extension with or without parts bins
  • Stainless steel shelves/worktops

Our standard medical trolley drawer & cabinet standard colours are

  • Prime Grey (G)
  • Prime White (W)

We offer the following premium colours and an Anti-Microbial white or alternatively, can match to your specific requirement.

 . .  . . . .

  • Nylon fibre reinforced forks
  • Non-marking soft rubber wheels
  • New series of castors combining high-functional structure and smart design
  • Precision waterproof ball bearings to ensure easy and silent movement, even with maximum loads
  • Highly corrosion proof and can withstand up to 110 degrees celsius steam sterilisation

Things to consider with our warranty.

  • Your Tasman Trolley should give you years of service. It is not uncommon to see our products still in use after 20+ years. You can renew this warranty for another five (5) years with our refresh warranty program.
  • Your Tasman Trolley has a five (5) year warranty on most components. Electrical components are 12 months. Please contact us if you have any issues.
  • Your Tasman Trolley frames are made from natural anodised aluminium extrusions. Cleaning this is easy. Use an abrasive cleaning technique with a gentle soap. An abrasive cleaning sponge with mild dishwashing liquid can work well. Do not use harsh acidic or alkaline cleansers because they may destroy the finish.
  • Worktop surfaces are made from high-pressure melamine. A soft cloth is recommended for cleaning. Do not use scouring pads or abrasive cloths (e.g. steel wool) or cream cleaners as these may damage the surfac
  • Our refresh warranty program can be done on-site or the unit can be returned to us. As part of this process, Tasman will refresh the trolley with a full clean, replacement of castors and repair any minor damage. Please contact us to refresh your Tasman Trolley.
  • Should you like to recycle your unit if you think it is at the end of its life cycle, Tasman can arrange this for you and recycle as much as is feasible.
  • If a product does not comply please notify Tasman in writing of the defect during the Warranty Period, and within 10 business days of the defect coming to its notice, Tasman Trolley will, at its option, either repair the product, exchange the product for a new Product, or refund the price paid for the product and accept its return.
  • Please provide either a reference purchase order or invoice number for the purchase.

The warranty does not apply:

  • As a result of any acts or omissions by any person other than Tasman Trolley or any external cause
  • If the defect is due to the product being used for purposes other than for purposes for which it was intended or which do not fall within the scope of any regulatory approval.
  • To a product that has been modified without the written permission of Tasman Trolley
  • If the product has not been stored or transported in accordance with Tasman’s recommendations.
  • For the avoidance of doubt, the warranty does not cover any defects or damage to products caused by improper use, tampering or pollution.

Instructional Videos

How to remove your Tasman Medical Trolley drawers

Learn about the adjustable drawer dividers

Learn about the Tasman pull-put slide, extending the work surface on your Tasman Medical Trolley

Learn more about our Emergency Trolleys

All Tasman Medical Trolleys can be customised

You can specify size, colours and extra features to create a medical trolley that works for you and your requirements. View some of our most recent custom examples.

Request a quote or get in touch and our expert team will answer all your questions.
